For specialist of extremely small signal measurement

 World's top-level, extremely low-noise amplifier
 Amplifies extremely small signals—voltage or current
 For measuring signals "I wanted to measure" or
   "I could not measure."

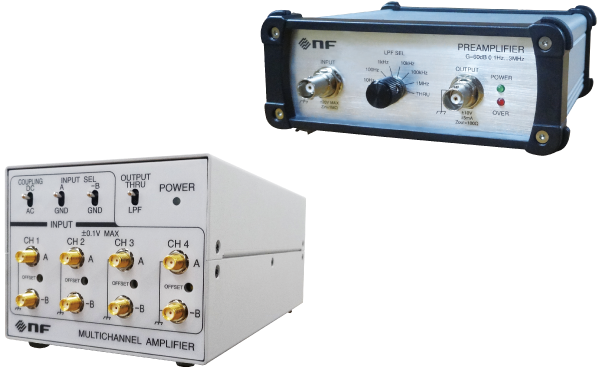

Low Noise Voltage Amplifier : SA-200 series and SA-400 series
Wideband Current Amplifier : SA-600 series
Transimpedance Amplifier: IV-204F3 / IV-202F4

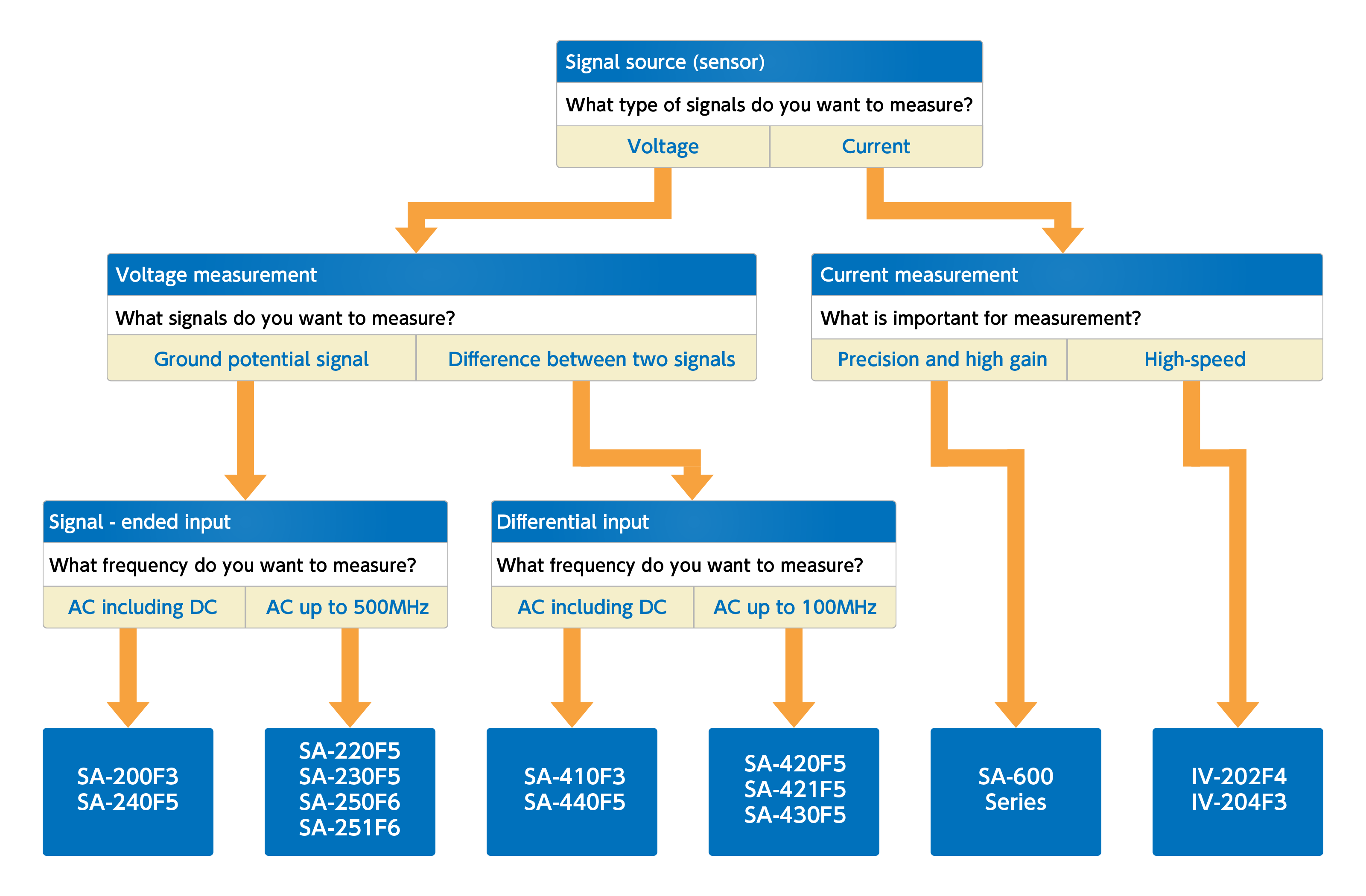

Product selection chart for small signal measurement amplifier

The SA-series amplifies signals from various sensors

You can find our recommendation through this selection chart

selection chart
  • SA-600
  • iv-200
  • SA-200f3
  • SA-200f5
  • SA-400
  • SA-400

Peripheral equipment

Low Noise DC Power Supply for SA-series amplifiers

Enables the optimal performance of the low noise amplifiers

Highly stable DC power supply with extremely low output noise voltage, through noise resistance, and ultra low noise design. The SA-series amplifiers meets severe low noise demand by using LP power supply.

lp5394

LP5394

  • Output noise voltage :10μVrms or lower typ.
  • Output voltage stability :10ppm/° typ.
  • Output voltage :0 to ± 15V
  • Output current :0.1A max.
  • Input voltage :AC 100V/120V/220V/240V
  • 1/4 rack size

lp5393

LP5393

  • Output noise voltage :10μVrms or lower typ.
  • Output voltage stability :20ppm/° typ.
  • Output voltage :± 12V to ± 15V
  • Output current :0.1A max.
  • Input voltage :AC 100V/120V/220V/240V
  • 1/4 rack size

  Cable for connecting LP-series and SA-series amplifies

Type Item Note
PA-001-2372 OUTPUT CABLE A For SA-600 series, SA-240F5, SA-410F3, SA-440F5
PA-001-2373 OUTPUT CABLE B For SA-200F3, SA-220F5, SA-420F5, SA-421F5, SA-430F5
PA-001-2374 OUTPUT CABLE C For SA-230F5
PA-001-3029 OUTPUT CABLE D For IV-200 series
 Check details
