Frequency Response Analyzer
Frequency Response Analyzer
FRA51615

Impedance measurement
ball
Measurement of resonance characteristics of piezo element
ball
Measurement of characteristics of multi-layer ceramic capacitor to which voltage is applied
ball
Measurement of internal impedance of battery cell


Gain-phase measurement
ball

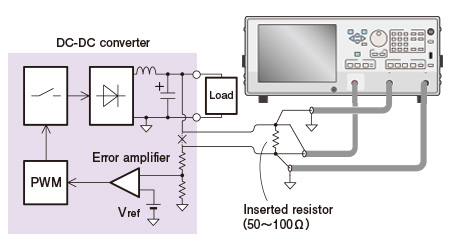

Loop gain measurement of DC-DC converter

By measuring the loop gain characteristic of the DC - DC converter under the actual voltage applied to, We quantitatively evaluate circuit stability from phase margin and gain margin.
#



ball
Conditions

Load: DC-DC converter with switching frequency 1MHz
Sweep frequency 100Hz to 1MHz, Insertion resistor 51 ohm



#
ball
Results

Phase margin, gain margin.

  The larger the margin, the more ringing and oscillation can be suppressed.

Crossover frequency

  It is a guide of responsiveness at load fluctuation.





ball
With marker search function, phase margin and gain margin can be detected automatically.
Other Example
ball
Measurement of Transmission Efficiency on Wireless charging
ball
Measurement of Mechanical Servo Characteristic
ball
Measurement of Frequency Response of Filters and Amplifiers
ball
Acoustic Analysis
ball
Vibration Analysis
